The world No. 1 in crude steel production steel plant, over 70% of the HSS for bar and wire are from us.

Professional Mill Roll Manufacturer

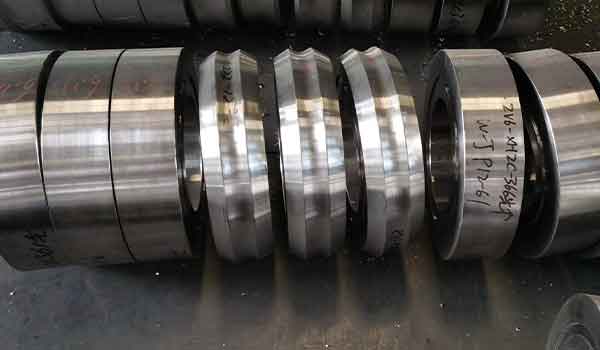

Seamless Steel Tube Roll Ring

Brand name: LMM GROUP
Packing Details : Wooden box with fumigation or Wooden Fram
Delivery Details: 30~60days or Based on the quantity
Shipping: Sea freight、Land freight、Air freight

LMM have been supplied to world’s top steel manufacturer Arcelormittal, TATA Steel, EZZ steel etc. We do OEM for Concast and Danieli for a long time

Manufacture drawing
Process schedule with ETD date
QC checking of each process
Checking report
Photos &videos of each process
ISO 9001 certificate
Warranty Time
The third party Checking

High Speed Steel Roll Ring Application

At present, High Speed Steel Roll Ring series products are widely used in:

● High-speed bar pre-finishing stand, finished product stand, finished product pre-rolling stand, pre-slicing stand, slitting stand of bar rolling mill

● High-speed wire rod mill pre-finishing mill

● Hot rolling narrow and medium wide steel rolling mill finishing mill

● Finishing stand of spring flat steel mill and small section steel mills such as angle steel and channel steel

Advantages of High Speed Steel Roll Ring:

HBW05 is a new type of material specially developed by our company for KOCKS rolling mill bar production line. The hardness of the roll surface is HSD84-89, the uniformity of the roll surface hardness: ≤3HSD, the hardness drop/mm: ≤2HSD. The hardness difference of 3 roller rings of the same hole type is less than or equal to 3HSD. Single grinding amount (reduction): ≤1 mm. The material has high wear resistance and impact toughness under thermal load, so the product has high wear resistance and impact toughness, no ring burst phenomenon, and low processing difficulty. Its steel passing capacity can reach 60-80% of the cemented carbide roller ring, the price is less than 50% of the alloy roller ring, and the frequency of slot changing can reach 2 shifts.

It can be seen from the metallographic photos that the metallographic structure of the high-speed steel roll is much better than other materials in terms of the shape, quantity, size and distribution of carbides, as well as the matrix structure and grain size.

During the use of high-speed steel rolls, under good cooling conditions, a thin and dense oxide film is formed on the surface of the roll body. This uniform, thin and dense oxide film can exist for a long time without falling off, so that the wear resistance of the high-speed steel roll is significantly improved.

  • High Speed Steel Roll Ring have good thermal stability, and the roll surface has high hardness and good wear resistance at rolling temperature.
  • The High Speed Steel Roll Ring has good hardenability, and the hardness from the surface of the roll body to the inside of the working layer hardly decreases, thus ensuring that the roll has the same good wear resistance from the outside to the inside.

Main chemical composition of the material

composition

C

Si

Mn

P

S

Cr

Proportion(%)

1.3-1.6

0.3-1.0

0.4-1.2

≤0.03

≤0.03

3.75-4.4

composition

Ni

Mo

V

W

Nb

Co

Proportion(%)

0.5-1.5

3.0-6.0

3.0-6.0

4.0-6.5

0.5-1.5

≤1.0

High Speed Steel Roll Ring Production Process

Product design→ Roll blank design→ Roll blank manufacturing→ Roll blank acceptance→ Annealing→ Rough turning→ Ultrasonic flaw detection→ High temperature quenching→ Low temperature tempering→ Ultrasonic flaw detection→ Finishing→ Ultrasonic flaw detection→ Roll body grinding→ Roll numbering→ Inspection→ Cleaning → Packing → Shipping → Warehousing → Inspection → Use and Maintenance → On-site Communication → Design Improvement.

As can be seen from the flow chart, roll manufacturing forms a closed-loop system from product design, production and manufacturing, use and maintenance, and improved design, and the quality of rolls is constantly improving.

High Speed Steel Roll Ring Production equipment
High Speed Steel Roll Ring Testing standards

Design specifications and standards for manufacturing, quality control and inspection

The relevant standards of the roller ring are as follows:

  • Anti-rust packaging implements GB/T1504 and GB/T1503-2008 standards.
  • Sampling method of samples for chemical analysis of GB222 steel and allowable deviation of chemical composition of finished products
  • GB223 Chemical Analysis Methods of Steel and Alloy
  • GB/T13313 Roller Shore Hardness Test Method
  • GB/T1804 General Tolerances Tolerances of linear and angular dimensions without tolerances
  • GB/T1503-2008 National Standard for Cast Steel Rolls

    Testing regulations:
  1. Check the size and surface quality of each part one by one;
  2. Carry out ultrasonic flaw detection three times one by one;
  3. Carry out hardness test piece by piece;
  4. The depth of the hardened layer of the roll body is affected by the manufacturing process.
High Speed Steel Roll Ring Performance and reporting

High Speed Steel Roll Ring have higher steel passing per groove (times) due to their good wear resistance, which saves roll changing time, improves rolling mill operation rate, reduces roll consumption, and improve the overall efficiency of the factory. Generally, the amount of steel passing in a single groove (times) is 3 to 5 times that of cast iron rolls.

The following table shows the use effect of High Speed Steel Roll Ring on continuous bar rolling mills:
