The world No. 1 in crude steel production steel plant, over 70% of the HSS for bar and wire are from us.

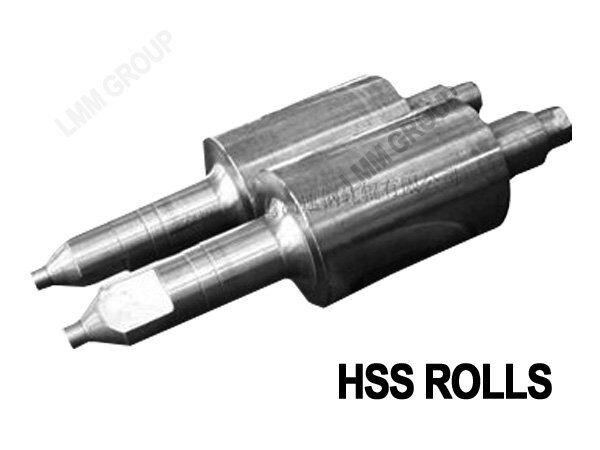

High speed steel roll

LMM have been supplied to world’s top steel manufacturer Arcelormittal, TATA Steel, EZZ steel etc. We do OEM for Concast and Danieli for a long time

Product classification: high-speed steel rolls, reinforced high-speed steel rolls, high-strength high-speed steel rolls, super-strength high-speed steel rolls, split high-speed steel rolls, KOCKS roll rings, double high-bar roll rings, high-speed wire pre-finishing roll rings and clamps Roller ring and other series.

Brand name: LMM GROUP
Packing Details : Wooden box with fumigation or Wooden Fram
Delivery Details: 30~60days or Based on the quantity
Shipping: Sea freight、Land freight、Air freight
Customization:
Customized logo(Min. Order 1 piece)
Customized packaging(Min. Order 1 piece)
Graphic customization(Min. Order 1 piece)
Checking report: Material Report、Hardness Report、UT/MT Report、Dimensions checking report、Mechanical Property Test Report
Processing technology: casting, forging

LMM have been supplied to world’s top steel manufacturer Arcelormittal, TATA Steel, EZZ steel etc. We do OEM for Concast and Danieli for a long time

Manufacture drawing

Process schedule with ETD date

QC checking of each process

Checking report

Photos &videos of each process

ISO 9001 certificate

Warranty Time

The third party Checking

Unique advantages of the product:

● The high-speed steel roll material contains high alloy elements such as vanadium, tungsten, chromium, molybdenum, niobium, etc. The types of carbides in the roll structure are mainly MC type and M2C type. Compared with ductile iron rolls and high-nickel-chromium rolls, the single-groove (time) steel passing is higher, which saves roll changing time, improves rolling mill operation rate, reduces roll consumption, reduces production costs, and improves the overall benefit of the factory.
● High-speed steel rolls have good thermal stability, and the roll surface has high hardness and good wear resistance at rolling temperature.
● The high-speed steel roll has good hardenability, and the hardness hardly decreases from the surface of the roll body to the inside of the working layer, thus ensuring that the roll has the same good wear resistance from the outside to the inside.
● During the use of the high-speed steel roll, under good cooling conditions, a thin and dense oxide film is formed on the surface of the roll body. This uniform, thin and dense oxide film can exist for a long time without falling off, making the high-speed steel roll wear-resistant. Sex is significantly improved.
● The high-speed steel roll material has a large expansion coefficient and good thermal conductivity. While the roll wears a small amount of the groove during the rolling process, the hole shape continues to become smaller due to the expansion of the high-speed steel material itself. Therefore, the high-speed steel roll is rolling. During the rolling process, the change of the rolling groove is small, and the consistency of the pass size is maintained for a long time, especially when rolling bars or rebars, it is more conducive to control the negative tolerance of the rolling material.
● Since the core of the centrifugal casting high-speed steel roll is made of alloy ductile iron material, the strength of the roll neck is high.



Application of high speed steel roll:

High-speed steel has only been used as a roll material for more than ten years. The reason why high-speed steel rolls are suitable for both plate and strip mills, wire and bar mills, and has achieved remarkable results is that high-speed steel has high The high wear resistance and hardenability, especially the red hardness at high temperature, make high-speed steel more suitable for use as a manufacturing material for rolls. At present, high-speed steel roll series products are widely used in:
● High-speed bar pre-finishing stand, finished product stand, finished product pre-rolling stand, pre-slicing stand, slitting stand of bar rolling mill
● High-speed wire rod mill pre-finishing mill
● Hot rolling narrow and medium wide steel rolling mill finishing line
● Finishing stand of spring flat steel mill and small section steel mills such as angle steel and channel steel



Main chemical composition:

Element

C

Si

Mn

Cr

Ni

Proportion(%)

1.5-2.2

0.3-1.0

0.4-1.2

3.0-8.0

0-1.5

Element

Mo

V

W

P

S

Proportion(%)

2.0-8.0

2.0-9.0

0-8.0

≤0.03

≤0.03



Effect:

Compared with traditional ductile iron rolls and high-nickel-chromium rolls, high-speed steel rolls have higher steel passing per groove (times) due to their good wear resistance, which saves roll changing time, improves rolling mill operation rate, reduces roll consumption, and reduces production. cost, and improve the overall efficiency of the factory. Generally, the amount of steel passing in a single groove (times) is 3 to 5 times that of cast iron rolls, and the total amount of passing steel can be guaranteed to be more than 4 times on average. The following table shows the use effect of high-speed steel rolls on continuous bar rolling mills:



Download

What do I need for offering a quote ?

Please offer us 2D or 3D drawings (with material, dimension, tolerance, surface treatment and other technical requirement etc.) ,quantity, application or samples. Then we will quote the best price within 24h.

We can provide special services and differentiated products according to the different working conditions of the rolling mill.

Service Include

Our Clients Give The Best Feedback

A STEEL
A STEEL
Read More
Although the price of LMMGROUP is 1.22 times that of the current rolling stock, through this trial, the data shows that the amount of steel passing through is more than 1.3 times higher than the current rolling stock, and the rolling groove wear of the off-line rolling is better than the current rolling stock.
B steel
B steel
Read More
According to the trial situation, The average amount of steel passing through LMMGROUP rolling is about 50%-60% of the alloy rolling spoke. The processing difficulty of high-speed steel is low, and the processing cost is lower than that of the alloy rolling wheel.
Previous
Next

Need For Some Help ?

One of the largest enterprises in China specializing in the production of high-performance high-speed steel roll series products

phone

86(411) 84174804

mail

lmme-business@lmmrolls.com

Rolling mill rolls product

Classification by roll material:

Cast iron mill rolls

  • Alloy indefinite chilled cast iron rolls
  • Alloy chilled cast iron rolls
  • Alloy SG ductile cast iron roll
  • Pearlitic ductile cast iron roll
  • Bainite ductile cast iron roll
  • Centrifugal cast iron roll


Cast steel mill rolls

  • Alloy cast steel rolls
  • Semi-steel roller
  • Graphite steel rolls
  • High-chromium steel roll
  • High-speed steel roll


Forging mill rolls

Sort by position on the rolling mill:

Work rolls
backup rolls

Intermediate roll

Product advantage

The world No. 1 in crude steel production steel plant, over 70% of the HSS for bar and wire are from us.

LMM high-speed steel rolls have higher steel passing per groove (times) due to their good wear resistance, which saves roll changing time, improves rolling mill operation rate, reduces roll consumption, and improve the overall efficiency of the factory.
Generally, the amount of steel passing in a single groove (times) is 3 to 5 times that of cast iron rolls.

Founded in 2007, LMM GROUP mainly produces all kinds of metallurgical rolls for various types of steel, bar, high-speed wire and strip hot and cold plate and strip rolling mills.

The company covers an area of 100,000 square meters, including two complete production lines for cast rolls and forged steel rolls, processing workshops, product research and development centers, testing centers, training centers and office buildings and other supporting facilities. The factory environment is very beautiful.
