MORE DURABLE MILL BEARINGSOUTSIDE DIAMETER SIZE RANGE OF100MM- 1 1590MM

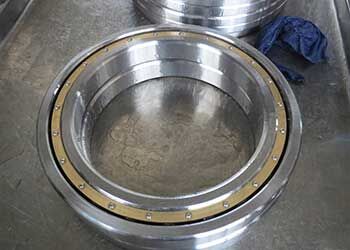

Name: Double row tapered roller bearings Inch series
Description:
Double row tapered roller bearings are divided into small angle (9 ° 25 0) according to the contact angle. The axial bearing capacity of tapered roller bearings depends on the contact angle a, the raceway angle of both o
Advantage:
LMMGROUP bearings factory is professional and especially for rolling mill, cold rolling mill,hot rolling mill and maintenance
LMMGROUP rolling mill bearings can replace import bearings that great save the purchase cost.
Details
Double row tapered roller bearings Inch series | ||||||||||||||||||||
Model | Boundary Dimensions（mm) | Basic rated load（KN） | Calculated parameters | Refer to the weight（kg） | Reference code | |||||||||||||||
d | D | B | T | C | H | Fw | Cr | Cor | e | Y1 | Y2 | Y0 | lnner ring | Bearing | SKF | FAG | NTN | NSK | TMKE | |
LMM2072 | 939.800 | 1333.500 | 463.550 | 463.550 | 17600 | 49000 | 0.33 | 2.00 | 3.00 | 2.00 | 2230 | 331350 | LM287849DW-LM287810 | |||||||
LMM2071 | 901.700 | 1295.400 | 438.150 | 450.850 | 16800 | 43000 | 0.35 | 1.90 | 2.90 | 1.80 | 2000 | 331306 | 539945 | EE634356D-634510 | ||||||
LMM2070 | 1130.300 | 323.850 | 323.850 | 10600 | 31000 | 0.33 | 2.00 | 3.00 | 2.00 | 895 | 331590A | LM286249DGW-LM286210 | ||||||||
LMM2069 | 863.600 | 1130.300 | 323.850 | 323.850 | 10600 | 31000 | 0.33 | 2.00 | 3.00 | 2.00 | 895 | 331590 | ||||||||
LMM2068 | 800.000 | 1260.000 | 375.000 | 375.000 | 14700 | 33500 | 0.33 | 2.00 | 3.00 | 2.00 | 1850 | BT2B334032/HA4 | ||||||||
LMM2067 | 710.000 | 900.000 | 197.000 | 197.000 | 4730 | 13200 | 0.35 | 1.90 | 2.90 | 1.80 | 325 | 331581A | 532828 | |||||||
LMM2065 | 682.625 | 965.200 | 338.138 | 338.138 | 9520 | 25000 | 0.33 | 2.00 | 3.00 | 2.00 | 815 | 332129A/HA4 | M282249D-M282210 | |||||||
LMM2064 | 682.625 | 965.200 | 338.138 | 338.138 | 9520 | 25000 | 0.33 | 2.00 | 3.00 | 2.00 | 815 | 333129/HA4 | L281149D-L281110 | |||||||
LMM2063 | 660.400 | 812.800 | 176.212 | 176.212 | 3580 | 11200 | 0.33 | 2.00 | 3.00 | 2.00 | 195 | 331198331198 | ||||||||
LMM2062 | 650.000 | 1030.000 | 270.000 | 270.000 | 8800 | 18300 | 0.31 | 2.20 | 3.30 | 2.20 | 900 | BT3B328306/HA4 | ||||||||
LMM2061 | 609.600 | 820.000 | 171.450 | 171.450 | 4020 | 10600 | 0.37 | 1.80 | 2.70 | 1.80 | 265 | BT2B332424/HA3 | 538086 | EE649241DW-649310 | ||||||
LMM2060 | 609.600 | 787.400 | 171.450 | 171.450 | 4020 | 10600 | 0.37 | 1.80 | 2.70 | 1.80 | 218 | BT2B331858/HA1 | ||||||||
LMM2059 | 580.000 | 830.000 | 280.000 | 280.000 | 6820 | 166000 | 0.31 | 2.20 | 3.30 | 2.20 | 515 | 331677 | ||||||||
LMM2058 | 571.500 | 812.800 | 285.750 | 285.750 | 7210 | 18000 | 0.33 | 2.00 | 3.00 | 2.00 | 500 | 331476 | ||||||||
LMM2057 | 571.500 | 812.800 | 285.750 | 285.750 | 7210 | 18000 | 0.33 | 2.00 | 3.00 | 2.00 | 500 | BT2B331854/HA | 543718 | M278749DW-M278710 | ||||||
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Always a pre-production sample before mass production;
Always final Inspection before shipment;
During the epidemic, provide remote detection technical support
Tell us a little about your application and we’ll get back to you to finalize a quotation to meet your needs as quickly as possible.
We would be happy to help and advise if you have any questions or inquiries.
